Microbox 6824A-ACP Product Description

Collapse Description

Microbox 6824A Fanless Industrial Thin Client

• 667MHz VIA Eden Processor
• 512MB PC133 RAM
• 64MB System Memory
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 1x PC/104 Expansion slot
• 1x 10/100M RJ-45 Ethernet connection
• 4x USB 2.0 ports
• 3x RS-232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 1x LPT Printer port
• Audio + Mic connections
• WatchDog Timer
• Screw-in power connector
• Power: 12VDC @ 5A, 5VDC @ 5A
• Consumption: +/- 16.1w @ max operation
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 80°C (-4°F to 176°F)
• Humidity: 8% to 90% RH non-condensing
• Compliances: cUL, CE, FCC
• Chassis: All Metal, Black Coating
• Physical: 7.54"w x 5.50"d x 3.20"h
• Warranty: 2 Year Arista Warranty
• Download Microbox 6824a-ACP Datasheet

Microbox 7824A-ACP Product Description

Collapse Description

Microbox 7824A Fanless Industrial Thin Client

• 500MHz AMD LX800 Processor
• 512MB DDR333 RAM
• 64MB System Memory
• 1x CompactFlash Type II Socket
• up to 8GB Industrial CF Type II available
• 1x PC/104 Expansion slot
• 2x 10/100M RJ-45 Ethernet connection
• 1v VGA port
• 2x USB 2.0 ports
• 3x RS 232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 1x LPT Printer port
• Audio + Mic connections
• WatchDog Timer
• Screw-in power connector
• Power: 12VDC @ 5A, 5VDC @ 5A
• Consumption: +/- 12.8w @ max operation
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 70°C (-4°F to 158°F)
• Humidity: 5% to 95% RH non-condensing
• Chassis: All Metal, Black Coating
• Physical: 8.84"w x 5.50"d x 2.89"h
• Warranty: 2 Year Arista Warranty
• Download Microbox 7824a-ACP Datasheet

AP 3200-ACP Product Description

Collapse Description

AP 3200 Fanless Office Grade Thin Client

• 500MHz AMD LX800 Processor
• 128MB DDR400 RAM
• 256KB System Memory
• 1x Internal Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 1x 10/100M RJ-45 Ethernet connection
• 1v VGA port
• 4x USB 2.0 ports
• 1x RS 232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 1x LPT Printer port
• Audio connections
• WatchDog Timer
• Power: 5VDC @ 25W
• Consumption: +/- 8.3w @ max operation
• Cooling: Fanless
• Operating Temp: 5°C to 50°C (40°F to 122°F)
• Storage Temp: -20°C to 70°C (-4°F to 158°F)
• Humidity: 8% to 90% RH non-condensing
• Compliances: cUL, CE, FCC
• Chassis: High Impact Plastic
• Physical: 7.48"w x 5.51"d x 1.56"h
• Warranty: 2 Year Arista Warranty
• Download Microbox AP 3200-ACP Datasheet

BoxPC 140A-ACP Product Description

Collapse Description

BoxPC 140A Fanless Multi-Monitor Thin Client

• 1.5GHz VIA C7 Processor
• 512MB DDR400 RAM
• 256KB System Memory
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100/1000M RJ-45 Ethernet connections
• 1v PCI expansion slot
• 1x VGA (up to 3 VGA optional)
• 4x USB 2.0 ports
• 5x RS 232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 1x LPT Printer port
• Audio connections
• Screw-in power connector
• Power: 110VAC @ 4A, 240VAC @ 2A
• Cooling: Fanless
• Operating Temp: 5°C to 50°C (40°F to 122°F)
• Storage Temp: -20°C to 80°C (-4°F to 176°F)
• Humidity: 5% to 95% RH non-condensing
• Ingress: NEMA, IP65
• Chassis: All Metal, Black Coating
• Physical: 11.56"w x 8.00"d x 3.84"h
• Warranty: 2 Year Arista Warranty
• Download BoxPC 140A-ACP Datasheet

BoxPC 240A-ACP Product Description

Collapse Description

BoxPC 240A Fanless Multi-Monitor Thin Client

• 1.5GHz VIA C7 Processor
• 512MB DDR400 RAM
• 256KB System Memory
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100/1000M RJ-45 Ethernet connections
• 2x PCI expansion slot
• 1x VGA (up to 5 VGA optional)
• 4x USB 2.0 ports
• 5x RS 232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 1x LPT Printer port
• Audio connections
• Screw-in power connector
• Power: 110VAC @ 4A, 240VAC @ 2A
• Cooling: Fanless
• Operating Temp: 5°C to 50°C (40°F to 122°F)
• Storage Temp: -20°C to 80°C (-4°F to 176°F)
• Humidity: 5% to 95% RH non-condensing
• Ingress: NEMA, IP65
• Chassis: All Metal, Black Coating
• Physical: 11.56"w x 8.00"d x 3.84"h
• Warranty: 2 Year Arista Warranty
• Download BoxPC 240A-ACP Datasheet

ARP 3606-ACP Product Description

Collapse Description

ARP 3606-ACP 6.5" Touch Panel Thin Client

• 500MHz AMD® Geode LX800
• 512MB DDR333 RAM
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100Mbps Ethernet connections
• 1x PC/104 expansion slot
• 1x External VGA
• 3x USB 2.0 ports
• 1x RS 232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 6.5" Active Matrix TFT LCD
• Brightness: 500 NITS
• Contrast: 600:1
• Colors: 262K
• Max Res: 640 x 480
• Dot Size: 0.207mm
• Viewing Angles: 60°U, 60°D, 70°L, 70°R
• Touchscreen: 5-wire resistive touch included
• Screw-in power connector
• Power Input: 65W External AC Adapter
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 80°C (-4°F to 176°F)
• Humidity: 5% to 95% RH non-condensing
• Physical: 9.50"w x 7.10"w x 3.33"d
• Cutout: 8.65"w x 6.27"w
• Warranty: 2 Year Arista Warranty
• Download ARP 3606-ACP Datasheet

ARP 3608-ACP Product Description

Collapse Description

ARP 3608-ACP 8.4" Touch Panel Thin Client

• 500MHz AMD® Geode LX800
• 512MB DDR333 RAM
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100Mbps Ethernet connections
• 1x PC/104 expansion slot
• 1x External VGA
• 3x USB 2.0 ports
• 2x RS-232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 8.4" Active Matrix TFT LCD
• Brightness: 450 NITS
• Contrast: 500:1
• Colors: 262K
• Max Res: 800 x 600
• Dot Size: 0.213mm
• Viewing Angles: 60°U, 40°D, 60°L, 60°R
• Touchscreen: 5-wire resistive touch included
• Screw-in power connector
• Power Input: 65W External AC Adapter
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 60°C (-4°F to 140°F)
• Humidity: 5% to 95% RH non-condensing
• Physical: 9.70"w x 7.50"w x 3.10"d
• Cutout: 8.75"w x 6.60"w
• Warranty: 2 Year Arista Warranty
• Download ARP 3608-ACP Datasheet

ARP 3610-ACP Product Description

Collapse Description

ARP 3610-ACP 10.4" Touch Panel Thin Client

• 500MHz AMD® Geode LX800
• 512MB DDR333 RAM
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100Mbps Ethernet connections
• 1x PC/104 expansion slot
• 1x External VGA
• 2x USB 2.0 ports
• 2x RS-232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 10.4" Active Matrix TFT LCD
• Brightness: 400 NITS
• Contrast: 500:1
• Colors: 262K
• Max Res: 800 x 600
• Dot Size: 0.264mm
• Viewing Angles: 55°U, 65°D, 70°L, 70°R
• Touchscreen: 5-wire resistive touch included
• Screw-in power connector
• Power Input: 65W External AC Adapter
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 60°C (-4°F to 140°F)
• Humidity: 8% to 95% RH non-condensing
• Physical: 11.50"w x 8.80"w x 3.20"d
• Cutout: 10.55"w x 7.90"w
• Warranty: 2 Year Arista Warranty
• Download ARP 3610-ACP Datasheet

ARP 3612-ACP Product Description

Collapse Description

ARP 3612-ACP 12.1" Touch Panel Thin Client

• 500MHz AMD® Geode LX800
• 512MB DDR333 RAM
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100Mbps Ethernet connections
• 1x PC/104 expansion slot
• 1x External VGA
• 3x USB 2.0 ports
• 2x RS-232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 12.1" Active Matrix TFT LCD
• Brightness: 400 NITS
• Contrast: 500:1
• Colors: 262K
• Max Res: 800 x 600
• Dot Size: 0.3075mm
• Viewing Angles: 50°U, 60°D, 70°L, 70°R
• Touchscreen: 5-wire resistive touch included
• Screw-in power connector
• Power Input: 65W External AC Adapter
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -30°C to 60°C (-22°F to 140°F)
• Humidity: 8% to 95% RH non-condensing
• Physical: 12.60"w x 10.02"w x 2.725"d
• Cutout: 11.76"w x 9.28"w
• Warranty: 2 Year Arista Warranty
• Download ARP 3612-ACP Datasheet

ARP 3615-ACP Product Description

Collapse Description

ARP 3615-ACP 15" Touch Panel Thin Client

• 500MHz AMD® Geode LX800
• 512MB DDR333 RAM
• 1x Compact Flash Type II Socket
• up to 8GB Industrial CF Type II available
• 2x 10/100Mbps Ethernet connections
• 1x PC/104 expansion slot
• 1x External VGA
• 3x USB 2.0 ports
• 2x RS-232 COM ports
• 1x RS-232/422/485 COM ports
• 1x KB/MS port
• 15" Active Matrix TFT LCD
• Brightness: 250 NITS
• Contrast: 500:1
• Colors: 16.2M
• Max Res: 1024 x 768
• Dot Size: 0.297mm
• Viewing Angles: 65°U, 55°D, 65°L, 65°R
• Touchscreen: 5-wire resistive touch included
• Screw-in power connector
• Power Input: 65W External AC Adapter
• Cooling: Fanless
• Operating Temp: 0°C to 50°C (32°F to 122°F)
• Storage Temp: -20°C to 60°C (-4°F to 140°F)
• Humidity: 8% to 90% RH non-condensing
• Physical: 14.51"w x 11.80"w x 2.80"d
• Cutout: 13.54"w x 10.91"w
• Warranty: 2 Year Arista Warranty
• Download ARP 3615-ACP Datasheet

C-UNO-2053E-ACP Product Description

Collapse Description

C-UNO-2053E-ACP Industrial Thin Client

• AMD GX-2 400MHz CPU
• 256 MB SDRAM
• VGA output (1600 x 1200)
• KB/Mouse input
• 2 USB ports
• 2 x RS-232
• Dual 10/100Base-T option
• Audio line out
• Power Input : 10 ~ 30 V DC
• Chassis Grounding design

The 2053E "UNO" is Advantech's latest industrial Thin Client offering. Building on experience producing the 5820, this unit is faster (with a 400MHz CPU), supports sound, USB, and high color at high resolution and is capable of dual Ethernet support. Most impressive however is the innovative case design - due to a one-piece extruded design, the UNO has an extremely solid, low profile feel. The extremely compact EMI-protected aluminum housing also supports DIN-rail mounting. The UNO is completely interchangeable with any other ACP Enabled Thin Client, and is designed for environments that would be a challenge to most other industrial Thin Clients. The removal of any fans, hard disks and other moving parts means that the UNO has excellent anti-shock (50G), anti-vibration (2G) and grounding features. As such, it is specially designed for harsh industrial environments. The unit is IP30 certified against dust, can operate in 0 ~ 55 C environments, and is CE certified. Advantech can also mount the UNO to the rear of any of it’s flat panel monitors to make up an integrated design from 12” to 19”.

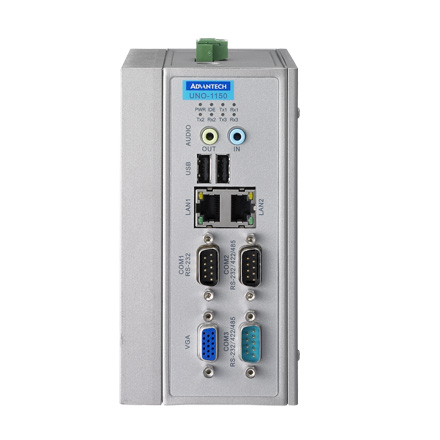

UNO-1150-ACP Product Description

Collapse Description

UNO-1150-ACP Product

• Onboard AMD GX2 400 MHz
• One RS-232 and two RS-232/422/485 ports with automatic flow control.
• Two 10/100Base-T RJ-45 ports
• Two USB, audio and internal CompactFlash®
• Compact size, small foot print, saves space and front accessible for easy wiring
• DIN-rail design for easy installation in field cabinet
• Onboard system & I/O LED indicators
• Fanless and no internal cabling design

More to Come.

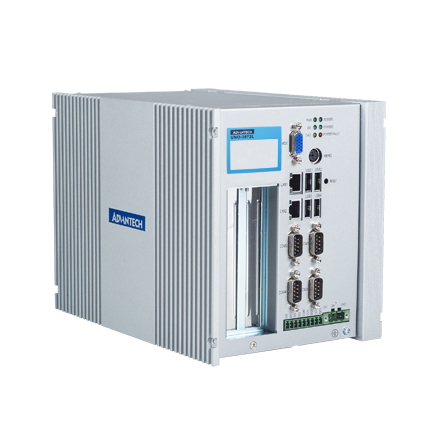

UNO 3072 MultiMonitor-ACP Product Description

Collapse Description

UNO 3072 MultiMonitor-ACP Product

• Onboard Celeron® M processor
• Two RS-232 & two RS-232/422/485 ports with RS-485 automatic flow control
• Two 10/100Base-T RJ-45 ports and four USB ports
• Two PCI-bus expansion slots for versatile applications
• Industrial proven design; anti-shock up to 50 G, anti-vibration up to 2 G
• 4-ch isolated DI, 4-ch isolated DO with timer, counter and interrupt handling
• Supports dual power inputs

More to Come.

Wonderware Microbox 6824 Product Description

Collapse Description

Wonderware Microbox 6824 Industrial Thin Client

• CPU: VIA Eden 667MHz
• Chipset: VT8606 (Twister-T) + VT82C686B
• System Memory: 64MB
• VGA: VIA Twister-T
• Storage Media: One CompactFlash Type II Socket
• LAN: Realtek 8139C 10/100 Ethernet
• I/O: 4x RS-232, 1x Printer, 2x USB 1.1
• Keyboard / Mouse: PS/2
• Audio: AC97
• Rear I/O Connectors: PS/2 Mouse, Keyboard, 4x RS-232, 1x Printer, 2x USB, Line-In, Line-Out, Mic, RJ-45, VGA
• Expansion Slot: One PC/104
• WatchDog Timer: YES
• Power Supply: 12VDC and 5VDC input

The Wonderware ThinManager Ready Thin Client is a non display terminal intended to be used as the client in an InTouch Client/Server architecture based on Microsoft's Windows Terminal Services. It is intended for customers who are using InTouch for Terminal Services and includes a base terminal server session license. This unit's small size (7" X 6" X 3") and rugged design makes it easy to mount almost anywhere. Connect to an external monitor / touchscreen along with a keyboard and mouse if desired.
